Bosch Motorsport Injector Model Package – 3D Models (CAD Data)
Real geometry. Built for fuel system development.

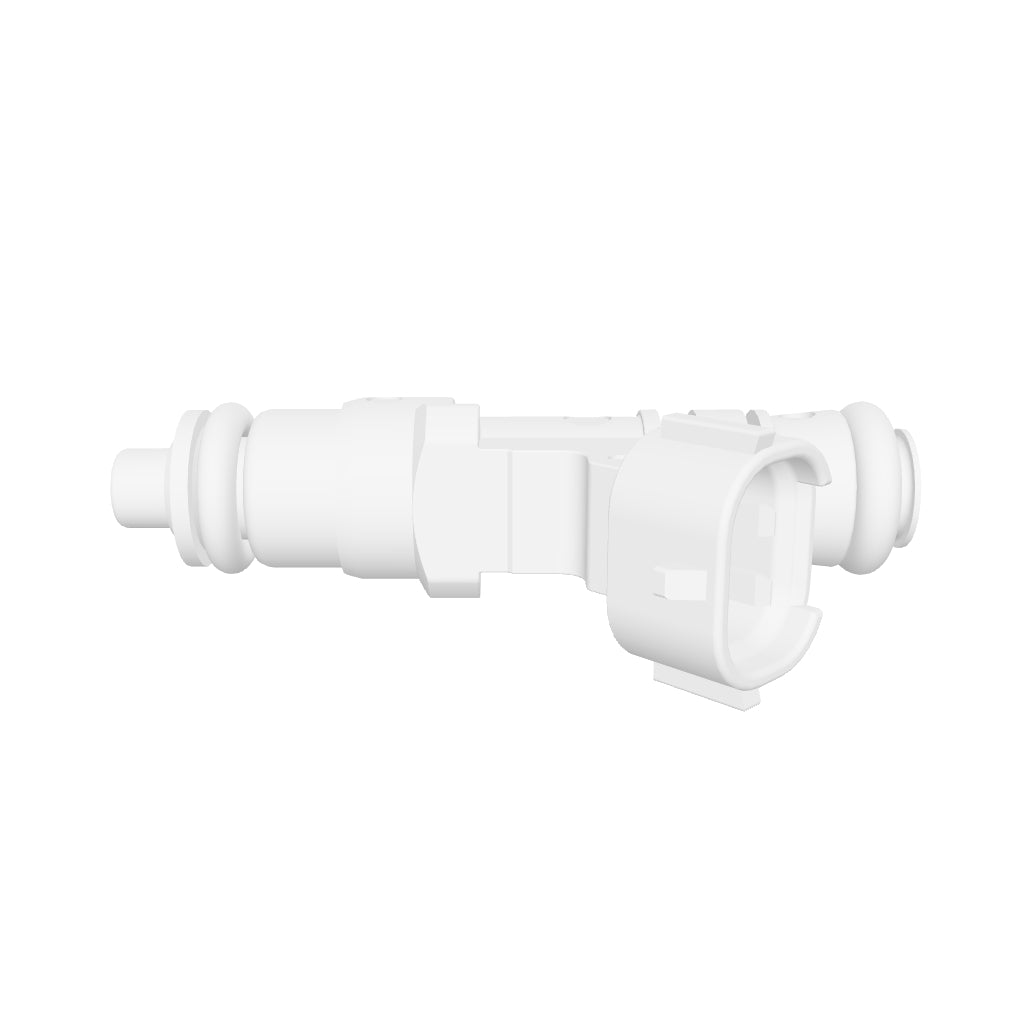

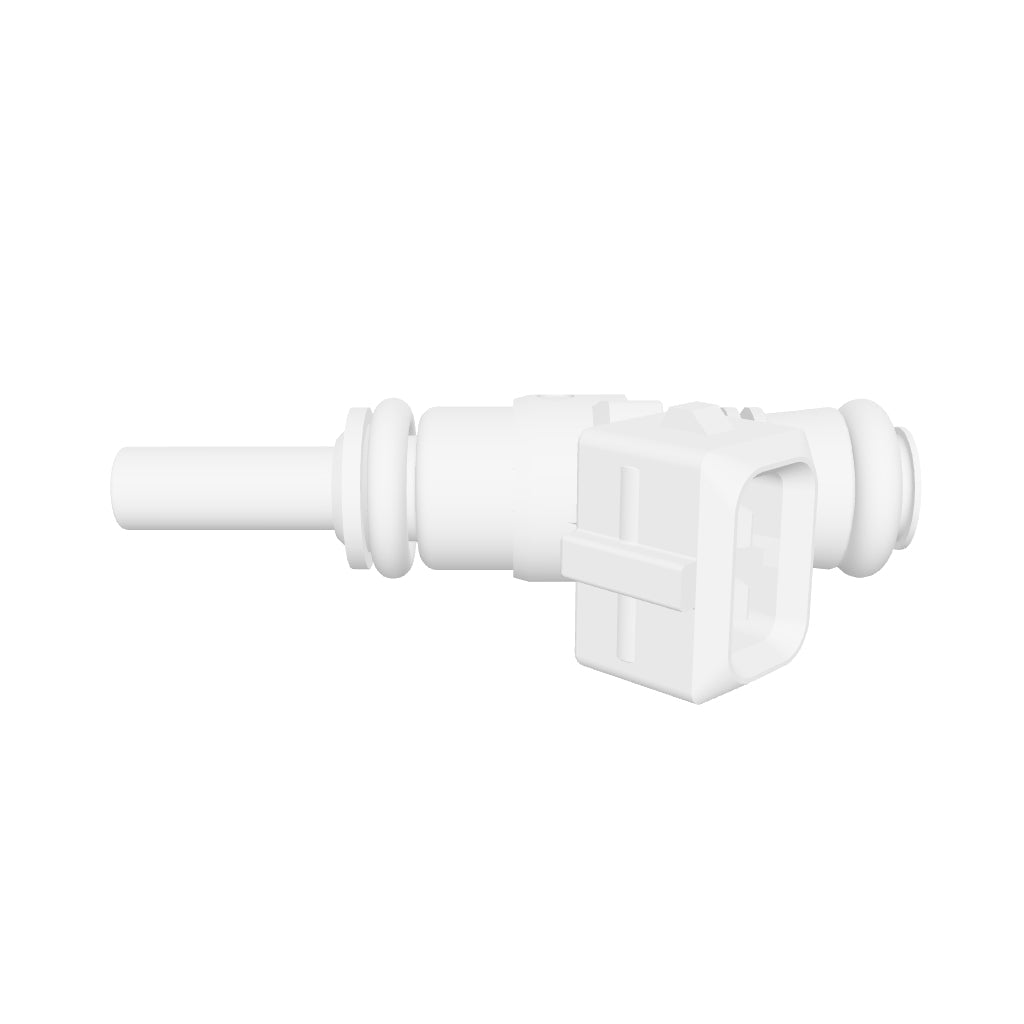

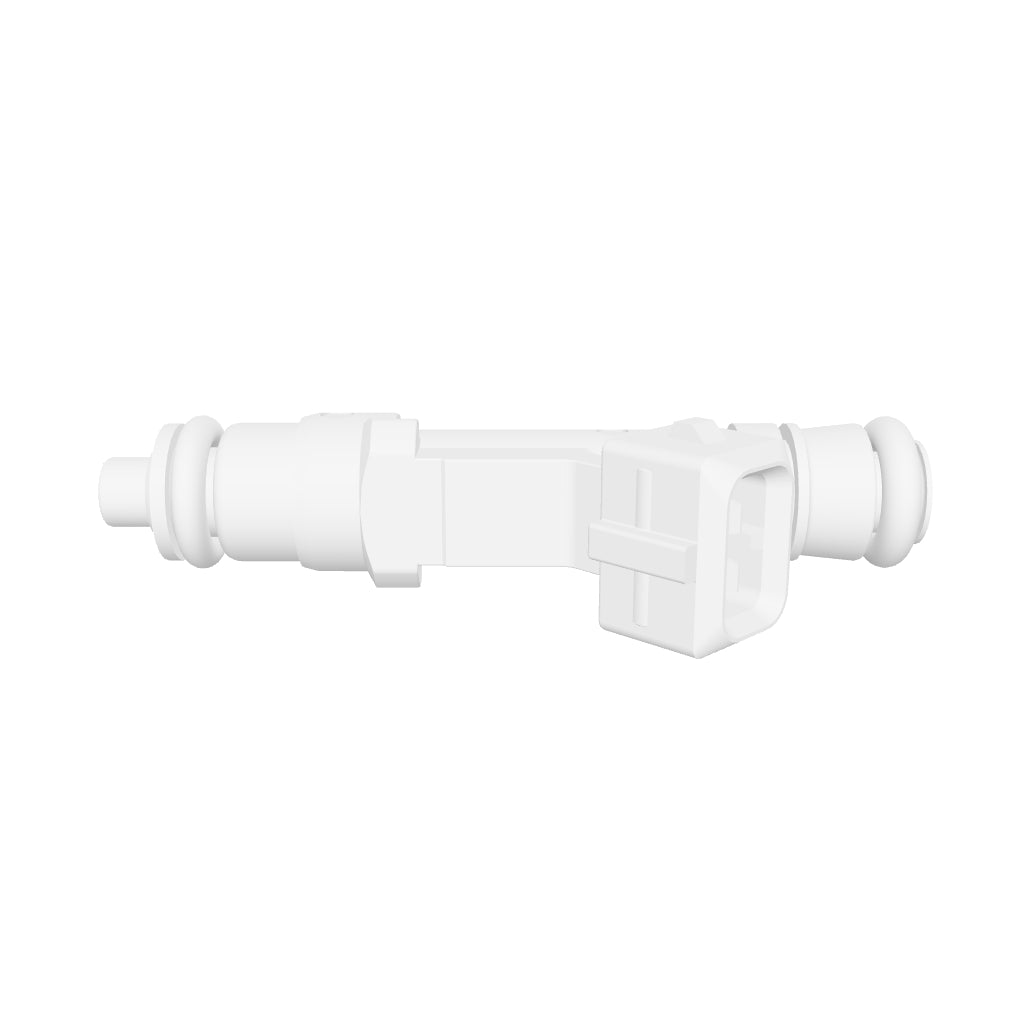

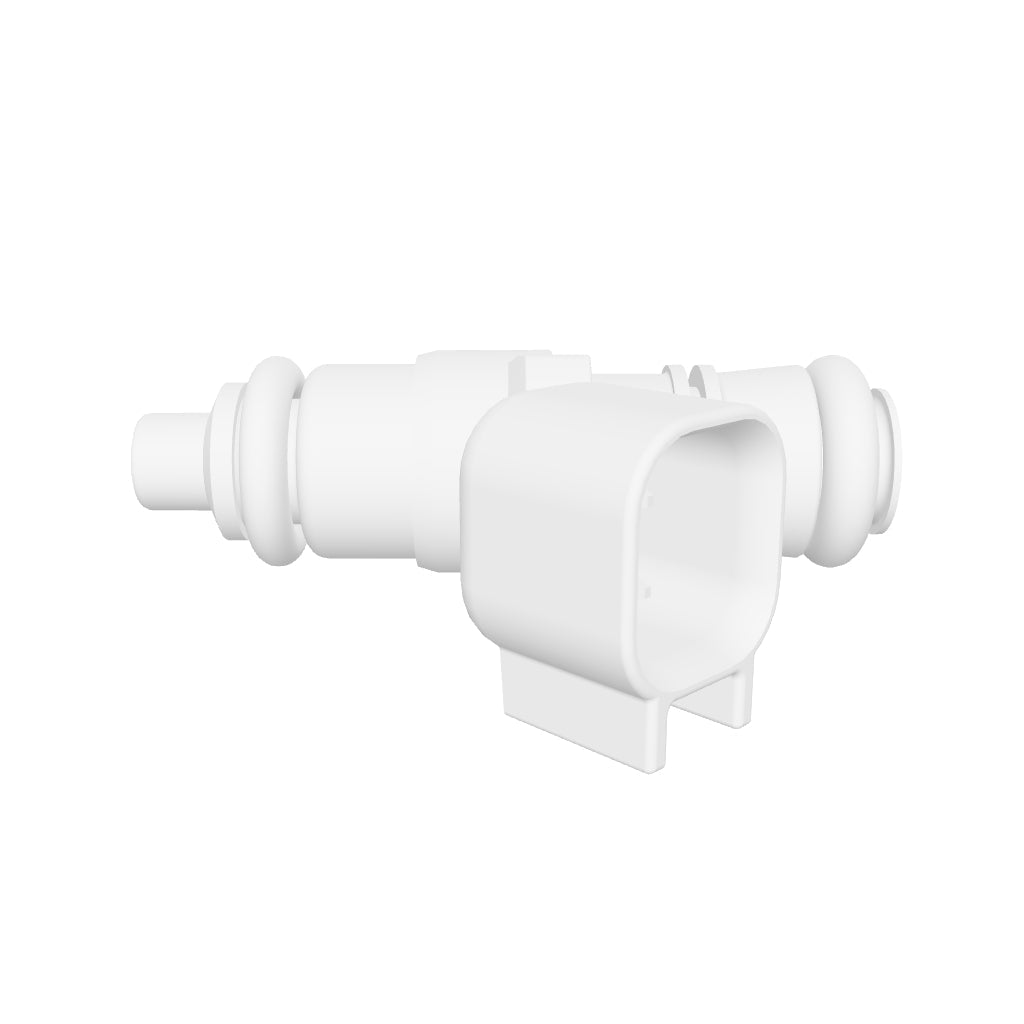

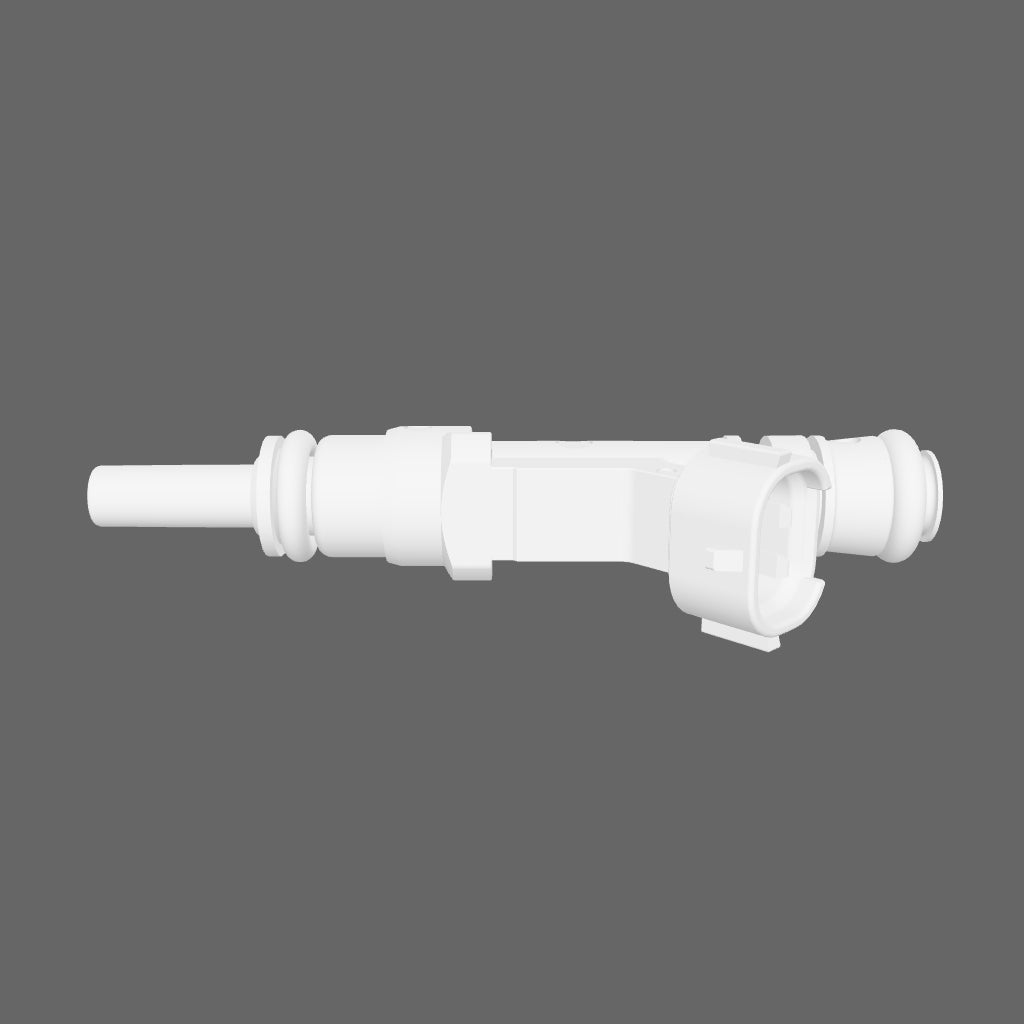

This is a high-quality 3D CAD model package of Bosch Motorsport fuel injectors, including 5 different injector variants in multiple lengths. The models are created for use in design workflows, mockups, and prototyping, giving you the flexibility to develop fuel systems across a wide range of engines and platforms.
With multiple injector lengths included, this package allows you to accurately design fuel rails, injector spacers, and complete fuel delivery systems while validating fitment and clearances without needing physical injectors on hand.
🔑 Key Features
📦 Package includes 5 Bosch Motorsport injector models in different lengths
📐 Accurate geometry based on real injector dimensions
⚙️ Ideal for designing fuel rails and complete fuel systems
🧩 Supports multiple platforms and injector configurations
🖨️ Suitable for 3D printing and fitment validation
🚀 Save time designing without requiring physical injectors
Design fuel systems with confidence — across any platform.
Important Notes
- Unless Stated Otherwise, 3D models are for mockup only and not production ready. Some Files are production ready and will state so on the product page.
- These files will come as a STEP File / Solid Body And are 3D printing Ready.
License
- Personal and commercial use allowed for design and development
- Resale or redistribution of the model file is not allowed
