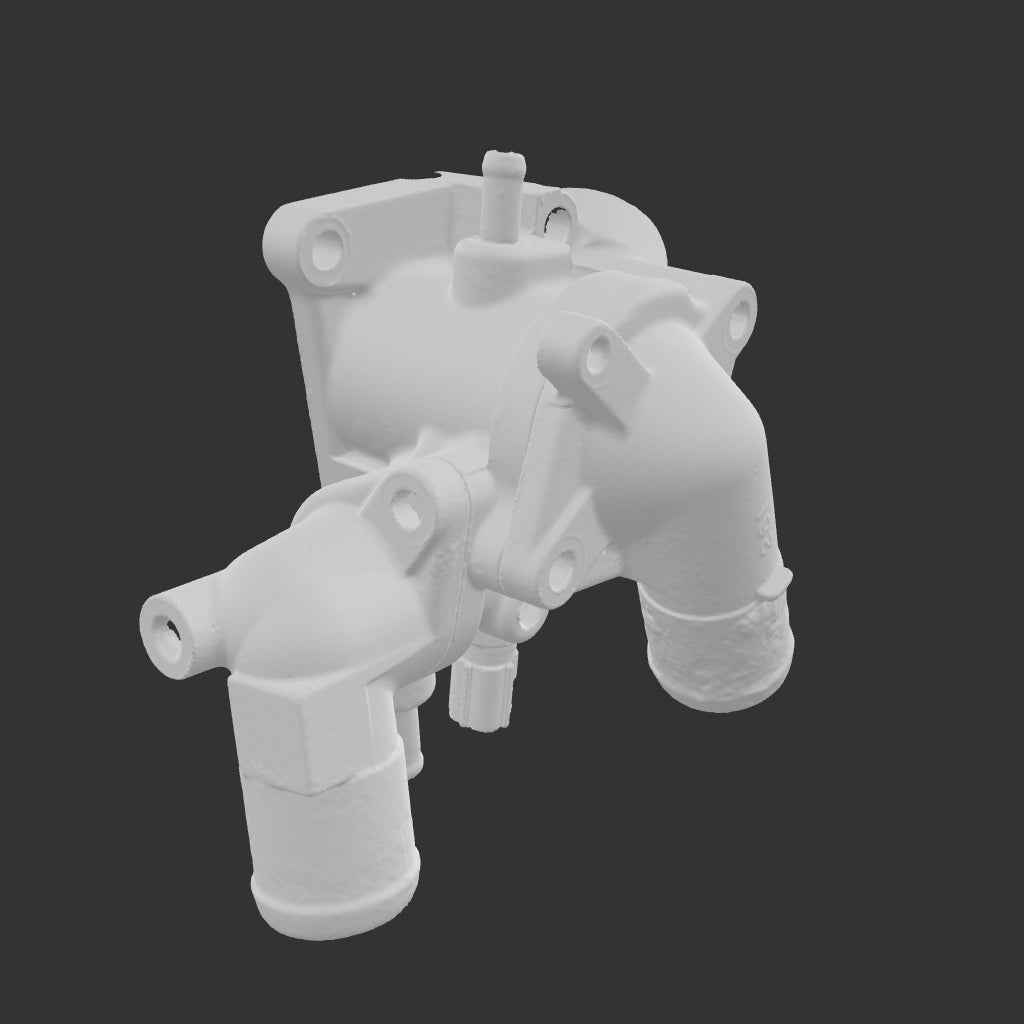

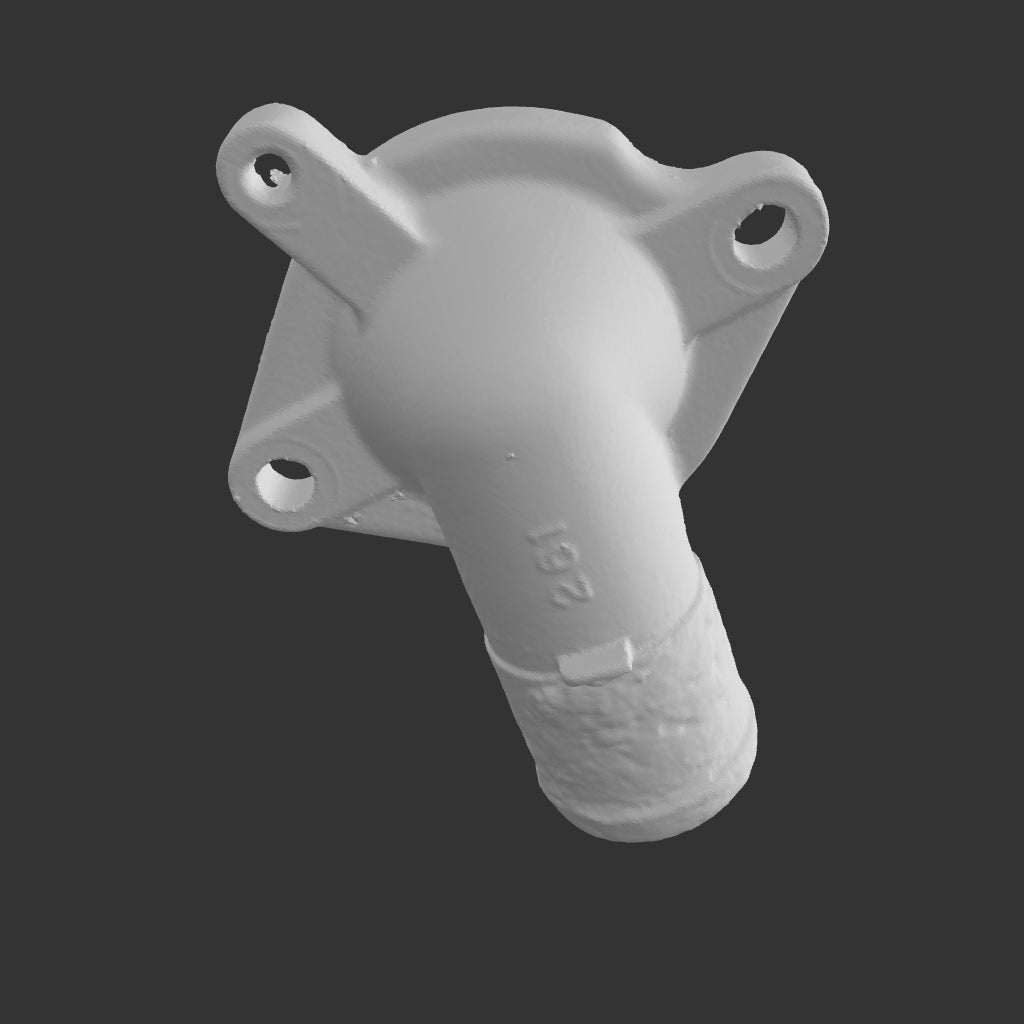

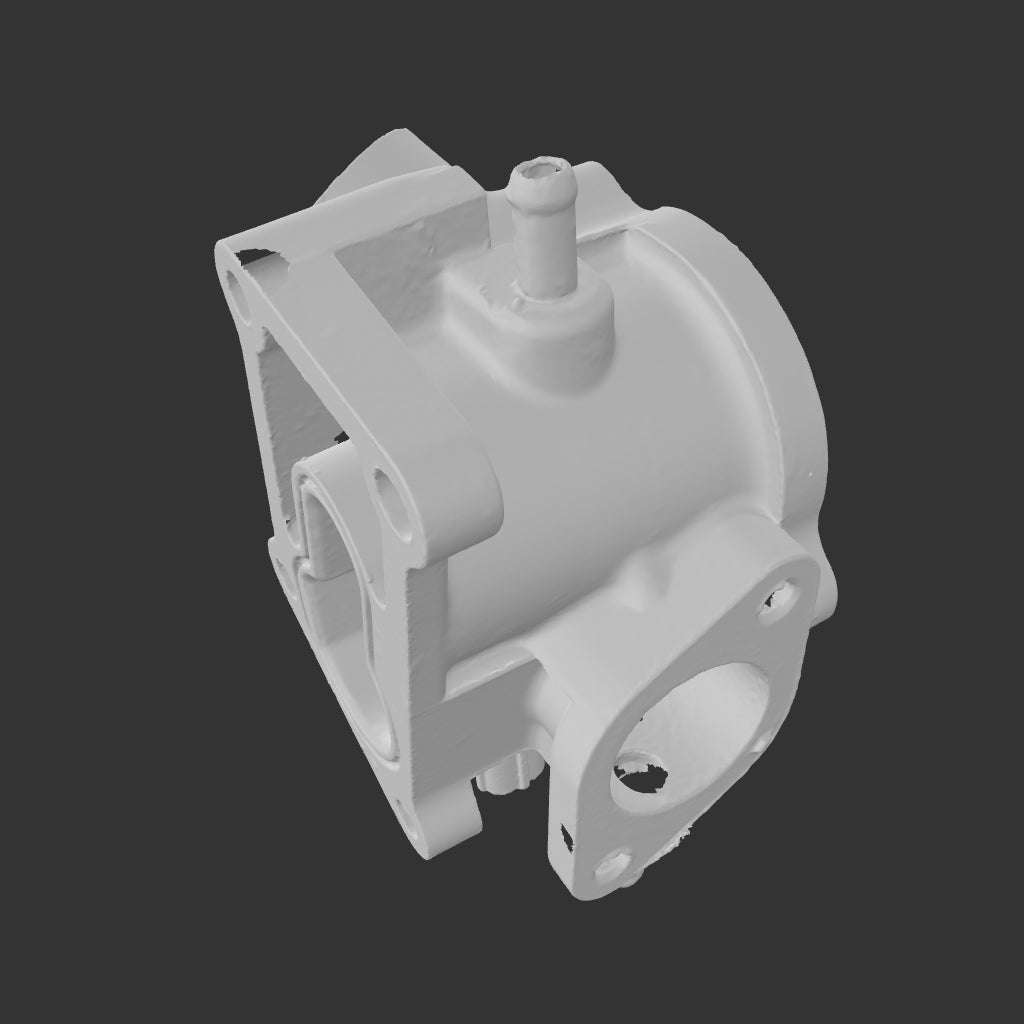

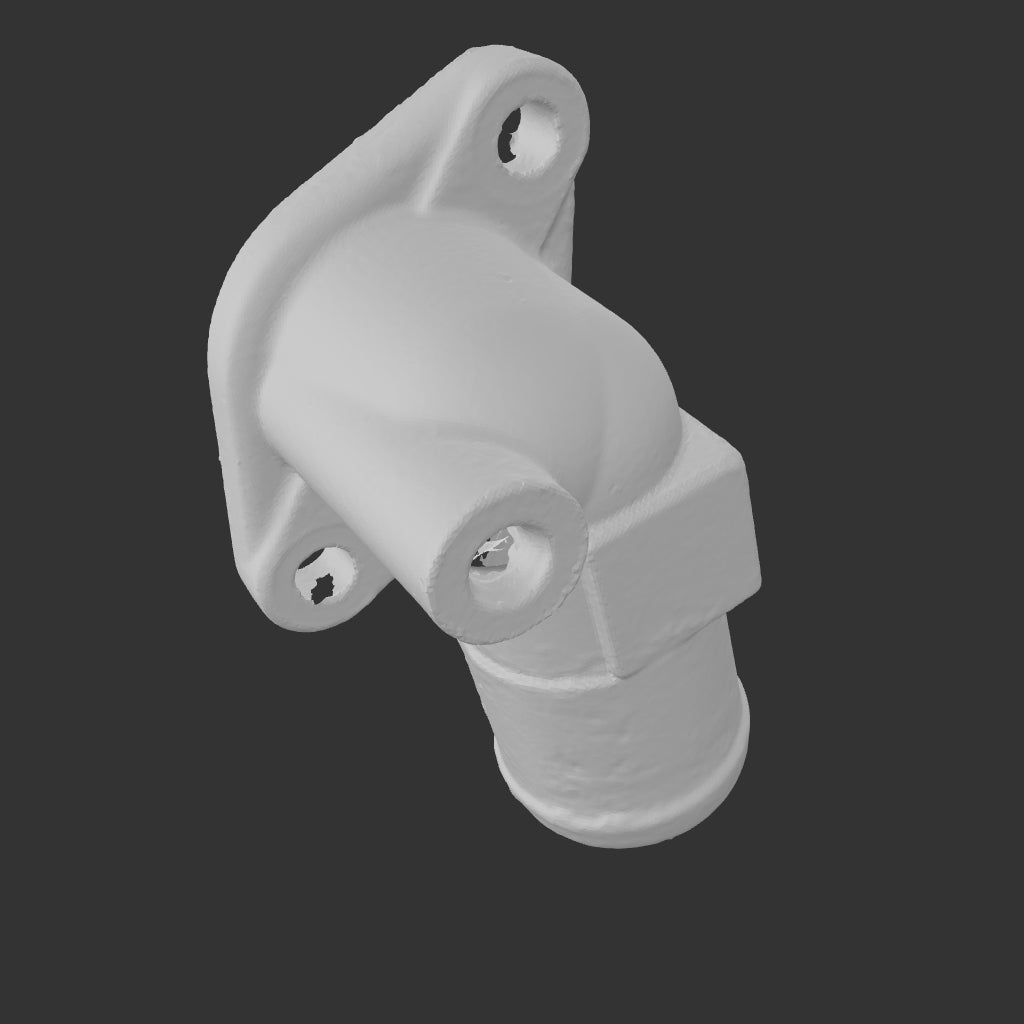

Evo 4–5 Water Neck Assembly – 3D Scan Data
Real OEM geometry. No guesswork.
This is a high-accuracy 3D scan of the OEM Evo 4–5 water neck assembly, captured directly from real components and processed for serious engineering work. Every surface reflects true geometry, allowing you to design cooling system components, adapters, and related parts that fit correctly and seal as intended.
At 3D Engine Shop, these scans are created using industrial-grade 3D scanning systems that cost over $50,000, and are the same tools we use in-house to develop real performance parts. You get access to this level of data without needing to invest in expensive equipment or rely on low-quality hobby scans.
🔑 Key Features
- 📏 ±0.025mm (25 micron) accuracy for precise measurements
- 🧠 No smoothing, no fake surfaces — real geometry preserved
- 🏭 Scanned from a real OEM Evo 4–5 water neck assembly
- 🔬 Development-grade data used in real product design
- ⚙️ Ideal for CAD, reverse engineering, and manufacturing
- 🚀 Reduce errors, save time, and ensure proper fitment
Start with real data — build parts that actually fit.
Important Notes
- Mesh is not watertight - intended for engineering workflows, not direct printing
- Minor scan artifacts may exist in hidden or inaccessible areas
License
- Personal and commercial use allowed for design and development
- Resale or redistribution of the scan file is not allowed
