Toyota 2JZ GTE VVTi Timing Back Plate – 3D Scan Data
Real OEM geometry. No guesswork.

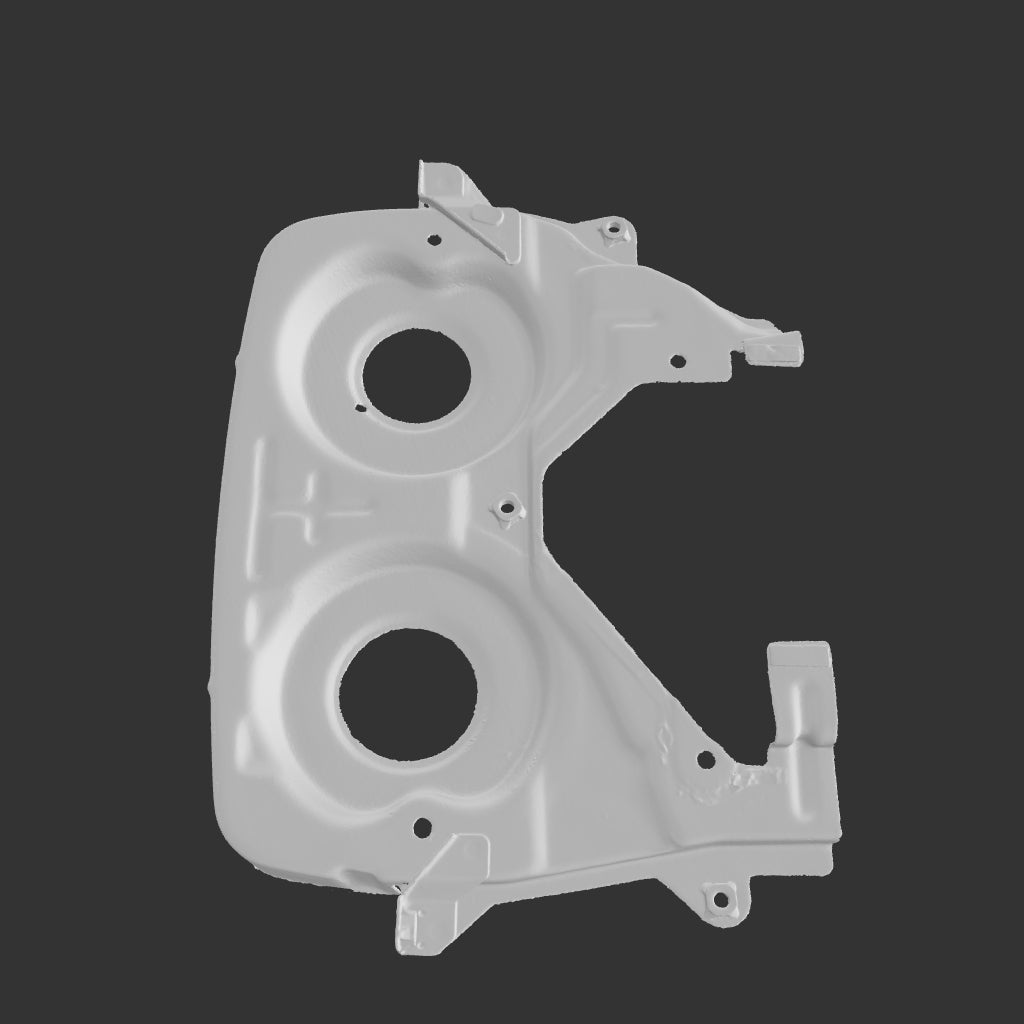

This is a high-accuracy 3D scan of the OEM Toyota 2JZ-GTE VVTi timing back plate, captured directly from a real part and processed for serious engineering work. Every surface reflects true geometry, including mounting faces, bolt locations, and critical alignment features, allowing you to design components that integrate precisely with the timing system and surrounding assemblies.
At 3D Engine Shop, these scans are created using industrial-grade 3D scanning systems that cost over $50,000, and are the same tools we use in-house to develop real performance parts. You get access to this level of data without needing to invest in expensive equipment or rely on low-quality hobby scans.
🔑 Key Features
📏 ±0.025mm (25 micron) accuracy for precise measurements
🧠 No smoothing, no fake surfaces — real geometry preserved
🏭 Scanned from a real OEM Toyota 2JZ-GTE VVTi timing back plate
🔬 Development-grade data used in real product design
⚙️ Ideal for CAD, reverse engineering, and manufacturing
🚀 Reduce errors, save time, and ensure proper fitment
Start with real data — build parts that actually fit.
